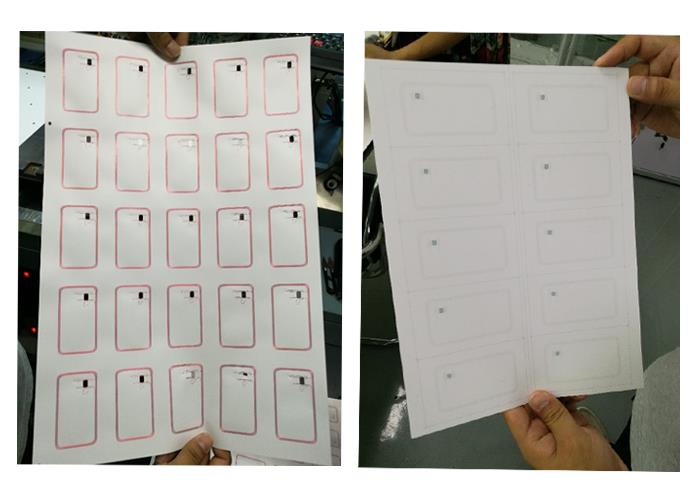

RFID Inlay
支持个性化定制，涵盖HF高频、UHF超高频、抗金属、图书馆专用、防伪溯源、物流追踪、服装吊牌、医药专用等全系列产品 全方位适配多行业、多场景的智能化识别、追踪、管理需求
Order before 3PM CST for same-day shipping on stock products (Continental US). Shop Stock Now
Call Us: 137138 29551
Features
1, brand new PVC material, stands unequaled torsion and bending,
2, automatic copper wire implanting, and spot welding, guarantee stable and reliable performance.
3, Chip shelter processing and high temperature steel sheet direct pressuring process ensure flatness of the finished card.
4, layout and thickness can be customized to meet specific requirement,
5, Trimmed reference edges and optional printed cross marks make the further process easier.
Specification:
| Material | Packing: PVC, PET, PET-G, PC | |
Antenna: copper coil, aluminum | ||
Thickness | 0.5±0.02mm | |
Layout & size | 5*5 | 305*460mm(popular inside China) |
3*8 | 295*480mm(popular inside China) | |
2*5 | 210*279(popular worldwide) | |
3*7 | 310*420mm(popular worldwide) | |
4*5 | 320*390mm | |
4*8 | 391*520mm | |
5*6 | 360*460mm | |
5*8 | 495*518mm | |
6*6 | 352*577mm | |
another layout can be customized. | ||
Interface | Contactless | |
Frequency | 13.56MHz, other frequency can be customized | |
Chip | FM1208/09/10, Mifare Desfire, NXP Jcop, | |
Chip Status | COB, MOA4, (with thickness of 0.35~0.38mm) | |
Antenna Technique: | pre-winding copper coil, ultrasonic wire implanting / ultrasonic welding | |
Antenna Size: | 38*68mm, 40*70mm | |
Technique | Direct pressure technique | |
Double-sided sheltering (ensures the flatness of the chip position, no bumps) | ||
Pack | 50pcs/bag | |
Storage temperature | -25°C~+65°C | |
Application:
Semi-product to produce CPU card/smart card.
